VD Wall 4k Processor A63 Series


Price:
Sale price$0.00 USD
Stock:
In stock

If the price shows $0. Please reach us through email or what's app for the pricing - Our email address is sales@avmastertech.com or reach us on WhatsApp +86 15818727449

Description

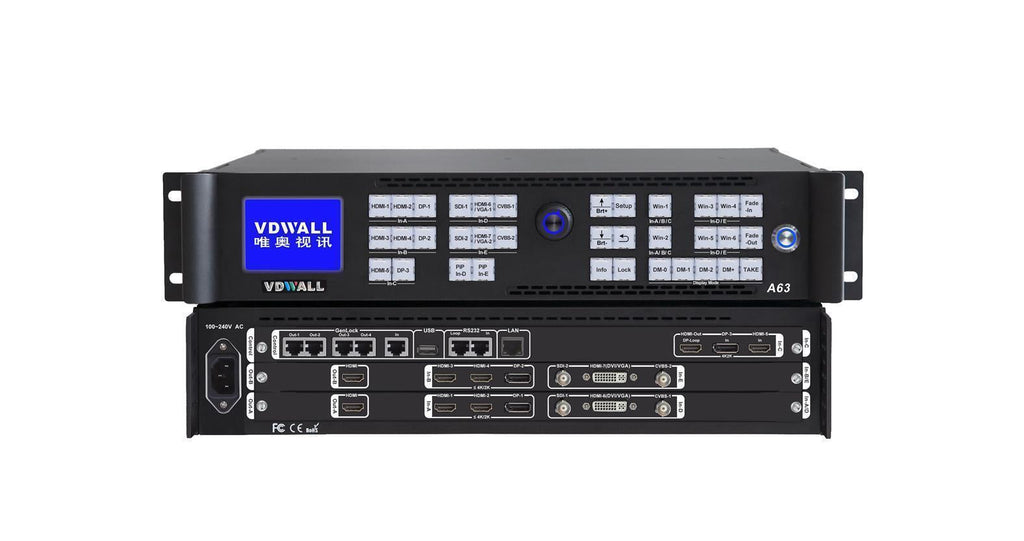

VD Wall 4k Processor A63 Series

4 windows support input image quality adjustment, including colour、gray level、brightnessinindependent RGB channel with 256 level.

Support output image hot backup Out A and out B can output same image , greatlyenhanceoutput stability

Designed for small pitches LED screen widely applied in exhibition station advertisement stage performance、restaurant、lecture hall、conference room、school auditorium、church、company promotion etc.

Technical Specifications:

  • Faroudja® Real Color® true color image processing, 10+ Bit Faroudja®DCDI de-interlacing,aroudja® Ture Life™ image augment.
  • 2 HMDI 2.0 outputs support 3840*2160_60Hz resolution and infinite scaling.
  • Total 14 video input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD(Ultra High Definition) input, includes.
  • 8 4K2K_60Hz input ports among which 5 HDMI 2.0 support HDCP 2.2、3 DP 1.2inputs、6HD+SD input(2 DVI input compatible with VGA input、2 3G-SDI、2 CVBS.
  • Support input signal seamless Fade in/Fade out switching.
  • Support maximum 4 windows 6 image display, each window support any scaling、openwindow、overlay display. 4 windows consist of 2 4K window and 2 2K window, 2Kwindowsupports PIP/POP function; l Each window provides 4K input signal random cropping and scaling.
  • 4 Windows support any size and position display on LED screen, overlapped windowsupportseamless and Fade in/Fade out switching.
  • Redundant display or synchronized monitoring available with 2 HDMI 2.0 output
  • switching mode, 2 HDMI 2.0 output can function as 1main output(PG)、1 Preview output. Signal transition between PG and PV support seamless or Fade in/Fade out switching.
  • In switching mode, provide 3 windows display and 3 windows preview, arbitrary setup of window size 、position and overlay order. Support 3 Windows switching simultaneouslywithseamless or Fade switching.
  • In mosaic mode,2 HDMI 2.0 can jointly display 1 8K*2K image, ingle A63 can drive24K controller, realize 8K*2K pixel to pixel display; l Any size and position cropping of 4K image, convenient and flexible irregular screen mosaic, no need complicated mosaic setup.
  • In mosaic mode, each HDMI 2.0 output support dual image display, 2 outputs total 4independent images.
  • Multiple units Cascade by Genlock sync. to realize higher definition synchronizedsplicingforbigger LED wall. 4 units Cascade extend input to 8K4K@60Hz and output to 16K4K@60Hz
  • 4 windows support input image quality adjustment, including colour、gray level、brightnessinindependent RGB channel with 256 level.
  • Support output image hot backup Out A and out B can output same image , greatlyenhanceoutput stability
  • Designed for small pitches LED screen widely applied in exhibition station advertisement stage performance、restaurant、lecture hall conference room、school auditorium、church、company promotion etc,

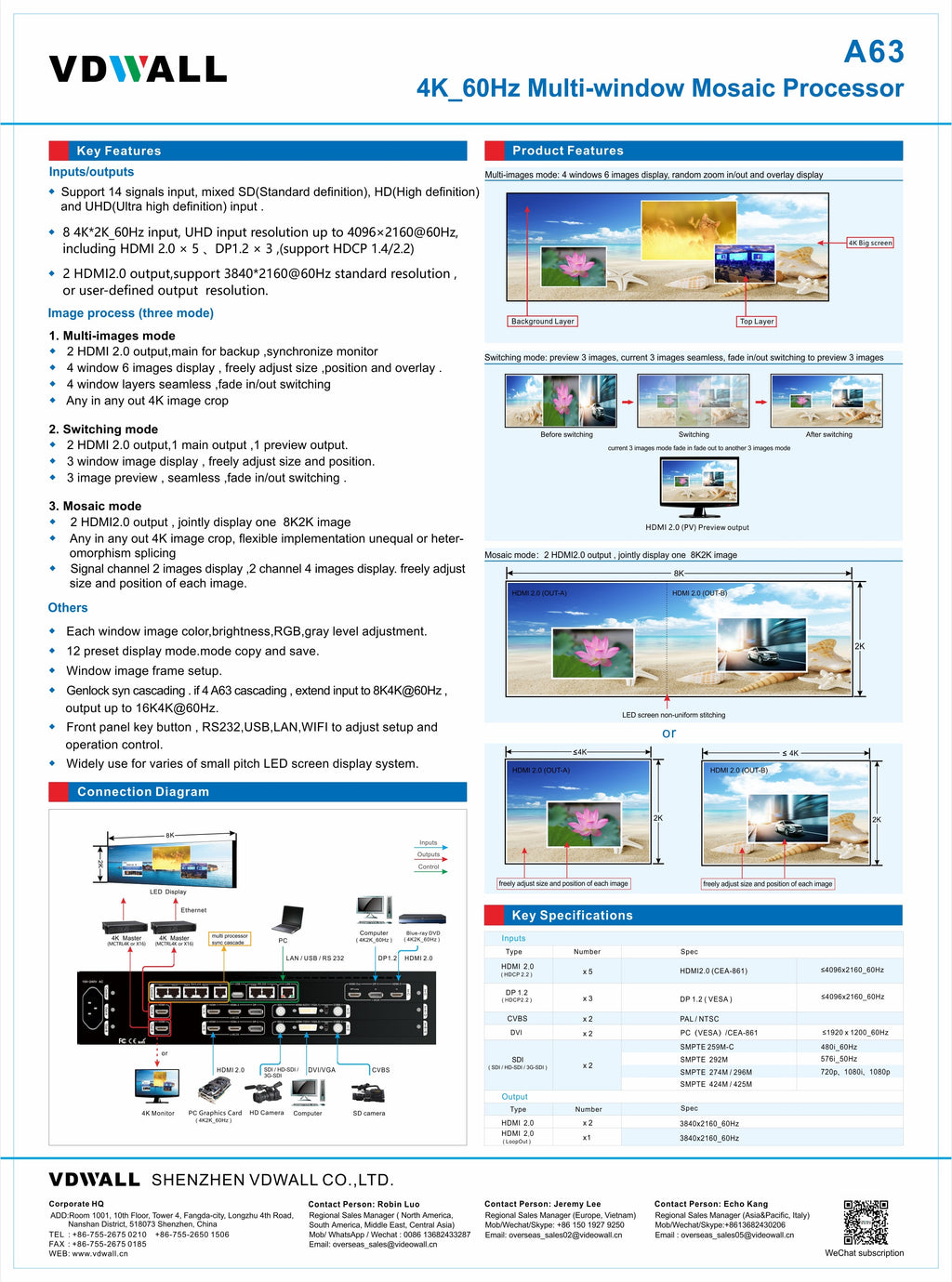

 Download the technical specification sheet here - LINK
