Description

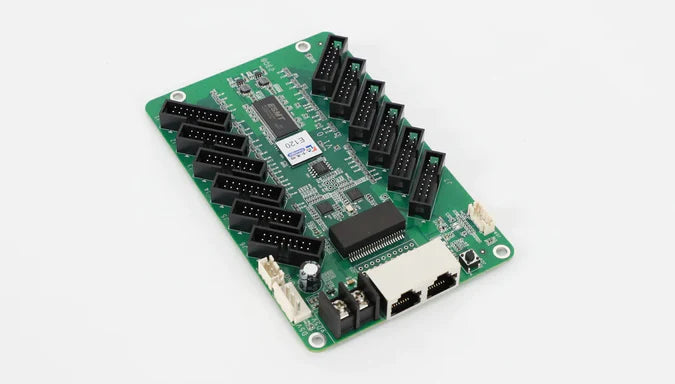

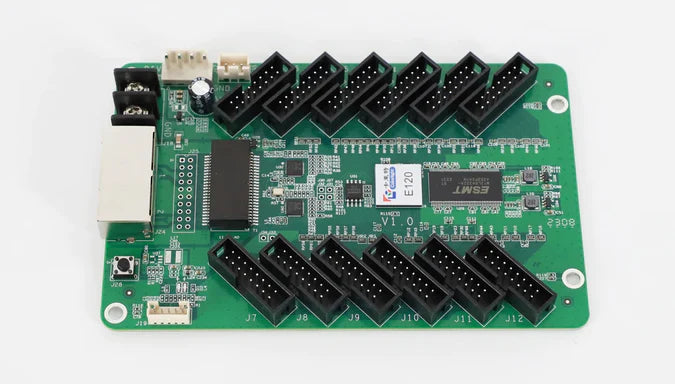

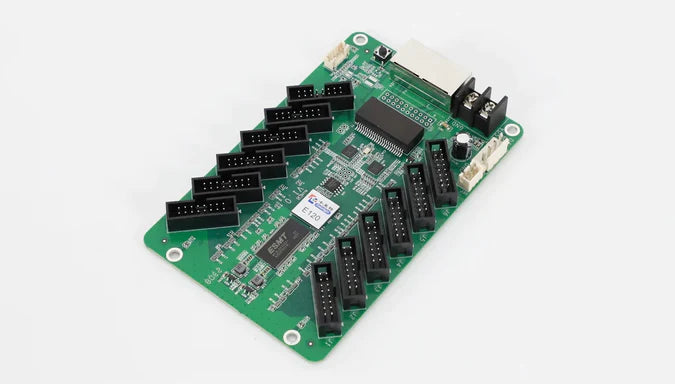

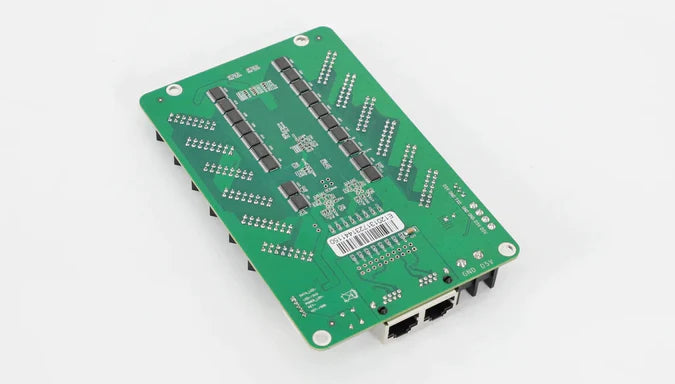

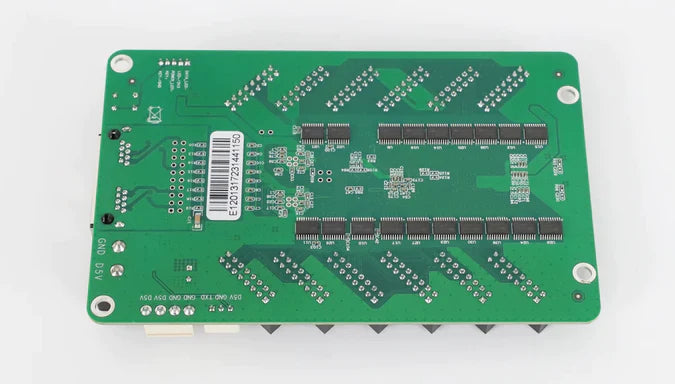

Colorlight E-series receiving card is a high-performance led receiving card, suitable for the control and management of led display, main model including E120. It has stable signal transmission and excellent image quality, supporting high resolution and high refresh rate. The E-Series receiving card also has flexible installation and configuration options, provides a convenient user interface and a variety of interface options, making it one of the ideal choices for the led display industry.
Technical Specifications:
- IntegratedHUB75 interface, more convenient with less cost
• Reduces the plug connectors and malfunction, lower failure rate
• Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips
• Perfect performance under lower grayscale status
• Better detail processing: partial dark at row, reddish at low gray, shadow problems can be solved
• Supports high-precision pixel level calibration in the brightness and the chromaticity
• Supports conventional chips, PWM chips, Silan chips and lighting chips
•Supports up to 1/128 scan
• Supports any pumping point and data group offset to realize various freeform display, spherical display, creative display, etc.
• Supports any pumping point and pumping column
• Supports 24 groups of RGB signal output
• Large loading capacity
• Wide working voltage range with DC 3.3~5.5V
• Compatible with all series of Colorlight’s sending devices
